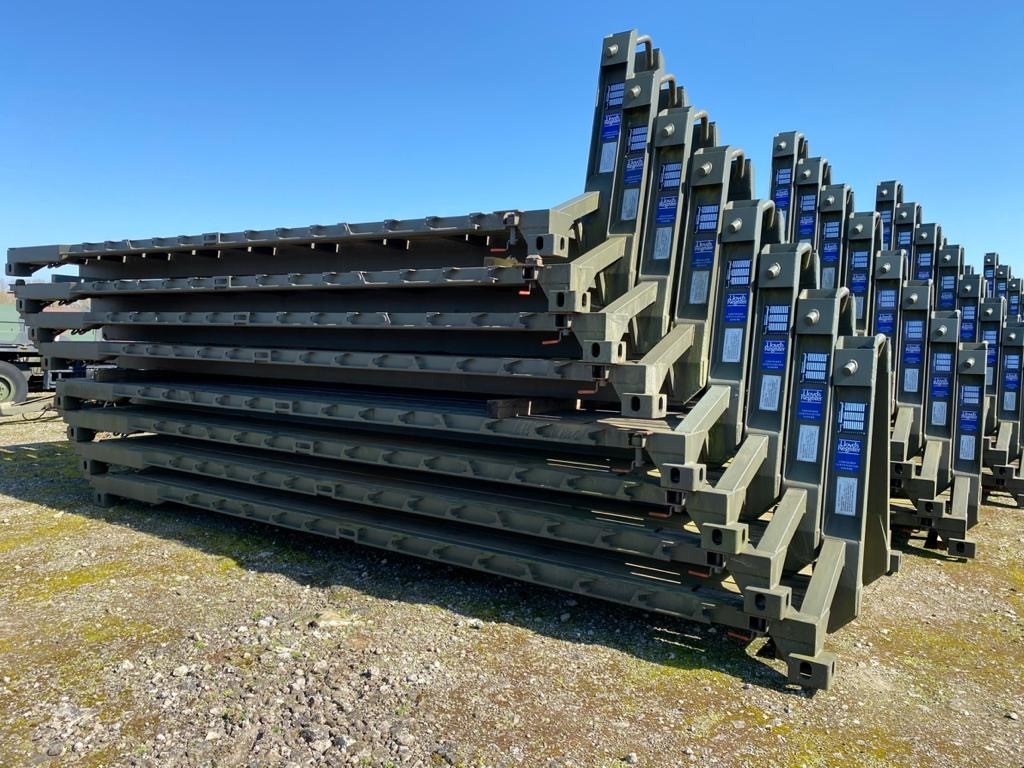

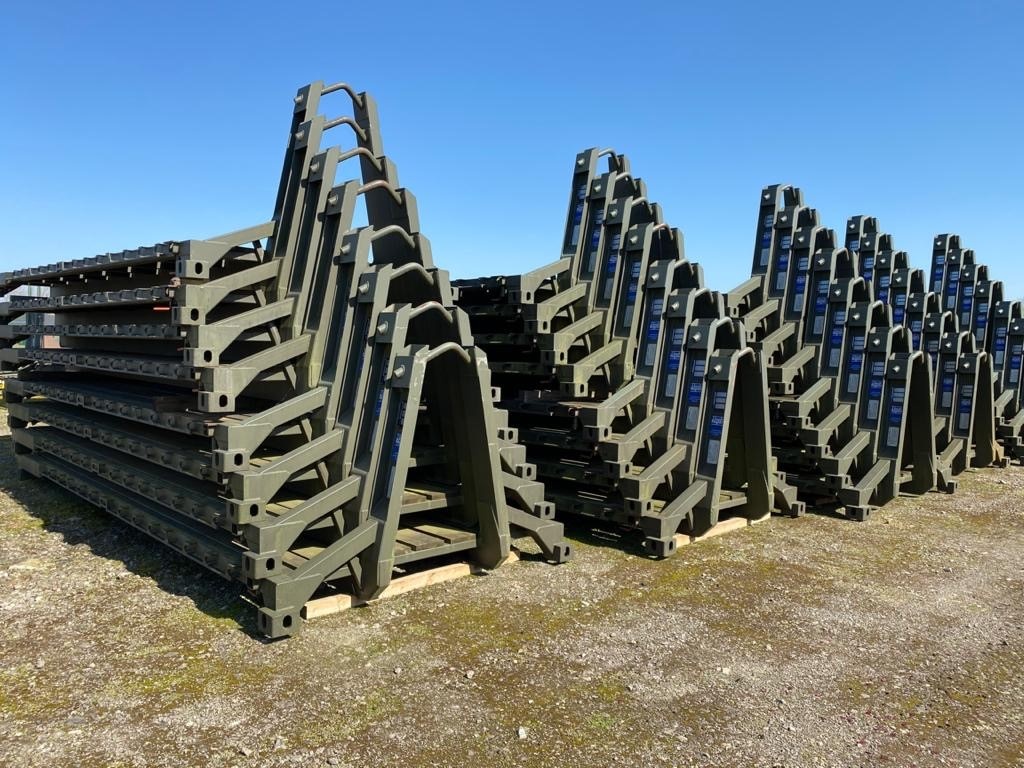

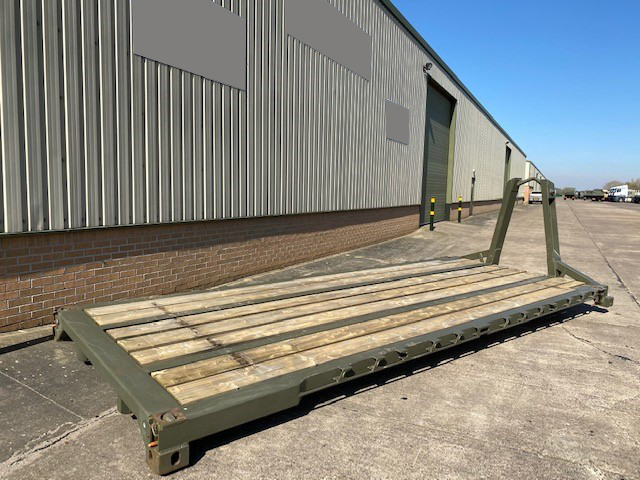

Just arrived direct from the MoD, in unused condition. 20ft ISO Flat Racks.
They can carry standard cargo, or 20ft ISO containers utilising the deployable integrated twist locks.
Roping/load restraint points along full length of side rails

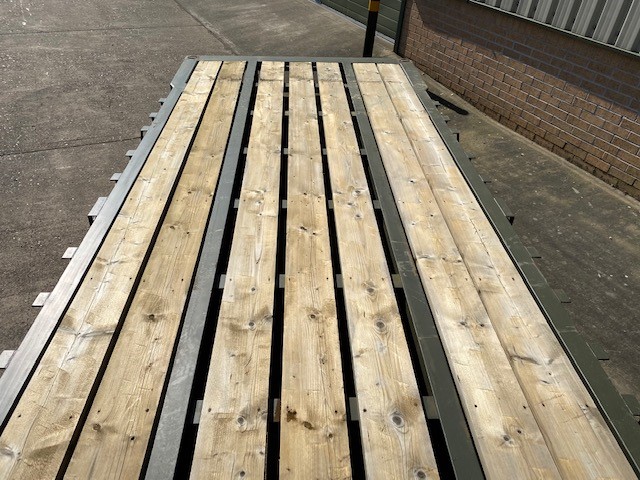

Heavy duty wooden boarding

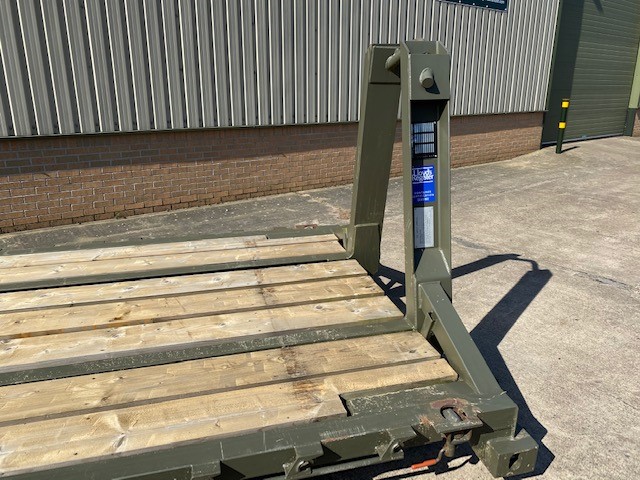

Easy pickup A Frame - Provided the hook of the load handling system is positioned within the capture area of the A frame when loading it will never fail to safely engage.
Front upward facing twist locks, with retractable rear ISO twist locks
Downward facing ISO corner castings
UPN internal subframe
Mechanical stop for locking to bed of truck
16,366kg Maximum Gross weight capacity
|Length: ||6.05m (Overall ISO closed)|
|Bed Length: ||5.87m|
|Overall length:||6.25m (ISO leg extended)|
|Width: ||2.44m (Overall)|
|Width of bed: ||2.40m|
|Height: ||1.63m (Floor to top of capture hook)|
|Height: ||1.35m (Bed to top of capture hook)|
|Weight: ||1,500kg (Approx.)|
|Rail Width: ||0.9m (Internal) 1.06m (outside subframe)|
